Precision flat component manufacturers often weigh double disc grinding against double surface lapping when selecting super-finishing equipment. Both processes achieve extremely high flatness and parallelism on dual workpiece surfaces, making them suitable for bearing, seal and semiconductor component manufacturing. However, they operate on fundamentally different material removal principles and deliver very different results in terms of production speed, achievable surface quality and operating cost. Understanding these differences helps procurement teams and production engineers select the optimal finishing technology for their specific precision component applications and volume requirements.

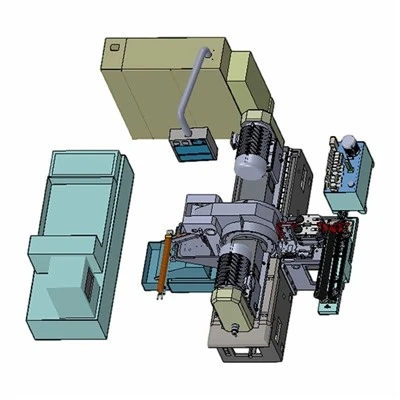

Material removal mechanism forms the most fundamental difference between the two processes. Double surface lapping uses loose abrasive slurry suspended between the workpiece and lapping plates, removing material through microscopic three-body abrasion as the plates rotate and oscillate. This gentle, low-pressure process produces extremely fine surfaces with minimal subsurface damage and residual stress, but removes material very slowly-typically only a few microns per minute. Double disc grinding uses bonded abrasive wheels that remove material through direct two-body cutting action at significantly higher pressure and speed. Stock removal rates range from tens to hundreds of microns per minute, making the process 5-15 times faster than lapping for equivalent material removal volumes. This speed difference becomes critical in high-volume production environments where throughput directly determines revenue capacity. For factories scaling up flat component output, a double disc grinding machine can process 5-10 times more workpieces per shift than a comparable double surface lapping machine.
Achievable precision and surface quality represent the traditional strength of lapping technology. Double surface lapping consistently achieves flatness below 0.0005mm and surface roughness as fine as Ra 0.01-0.05μm, with virtually zero subsurface damage and extremely low residual stress in finished parts. These characteristics make lapping indispensable for ultra-high-precision applications such as gauge blocks, optical components and semiconductor wafers where nanometer-level surface quality matters. Modern precision double disc grinding has narrowed the gap considerably, achieving flatness down to 0.001mm and surface roughness of Ra 0.1-0.2μm with fine-grit superabrasive wheels. While still not matching the absolute surface perfection of lapping, grinding delivers precision levels more than sufficient for most industrial bearing, hydraulic and automotive component applications at much higher production rates.
Consumable and operating cost structures differ dramatically between the two finishing technologies. Lapping consumes abrasive slurry continuously, with fresh slurry constantly fed into the lapping zone to maintain consistent cutting action. Slurry represents a major ongoing expense, especially for diamond or boron carbide abrasive formulations. Lapping plates also wear and require periodic reconditioning to maintain flat geometry. Grinding consumables consist primarily of abrasive wheels that have much longer service life per unit of material removed. A single CBN grinding wheel can process thousands of workpieces before requiring replacement, compared to continuous slurry consumption in lapping. When calculated on a cost-per-finished-piece basis, grinding typically reduces consumable expenses by 60-75% compared to lapping for equivalent precision levels in mass production.
Equipment footprint and production efficiency further separate the two processes in factory planning. Double surface lapping machines operate in batch mode, loading multiple workpieces onto carriers that rotate between upper and lower lapping plates. Each batch cycle takes several minutes to complete, with additional loading and unloading time between batches. Double disc grinding operates as a continuous through-feed process for suitable part geometries, with workpieces flowing steadily through the grinding zone without batch cycle interruptions. Continuous operation enables much higher daily output from a single machine and simplifies integration into automated production lines. Through-feed grinding also occupies less floor space per unit of production capacity, as continuous flow design eliminates the need for large batch loading areas and material buffer zones.
Application suitability ultimately determines which technology delivers better value for a given production scenario. Lapping excels at ultra-high-precision components requiring near-perfect surface quality and minimal subsurface stress, particularly for small batch sizes where long cycle times are acceptable. Grinding offers the best balance of precision, speed and cost for medium-to-high volume production of industrial flat components where micron-level accuracy is sufficient. Many factories actually use both processes in sequence-grinding for fast stock removal and preliminary precision, followed by lapping for final super-finishing-combining the productivity advantages of grinding with the extreme precision of lapping.
For precision component manufacturers evaluating super-finishing equipment options, the choice hinges on balancing required precision levels against production volume targets and operating budgets. Only applications demanding the absolute highest surface quality and minimal subsurface damage truly require the slower, more expensive lapping process. Production engineers should carefully evaluate actual part specifications against process capabilities before investing, as many manufacturers find that a properly configured double disc grinding machine meets all their precision requirements at a fraction of the per-piece cost of double surface lapping.
